Decision tree

Concept¶

Decision trees are the simplest possible ML code that we can build. Rather than thinking too much about it, let us jump into the details. There are mainly two types of decision tree

Classification tree : Classify people or things into two or more discrete categories. As we have done before

Regression Trees This one tries to predict a continuous value. The following example holds for that

We see multiple parts in the upside down tree shown above. Here are its main components:

• Root node or root: The very top node in the tree

• Internal or decision nodes: They have arrows pointing to them and away from them.

• Branches: The arrows are called branches, they might be labelled “yes” or “no”, or can be unlabelled. Usually if there is no label, then if the Node is True you go Left or else you go Right.

• Leaf nodes or leaves: They only have arrows pointing to them and represent the final classification.

You can see that classification trees are conceptually simple models. This means that they are highly interpretable, something that can be very desireable for a model as it allows us to peer into the inner workings of how the model works, instead of having to treat the model as a black box.

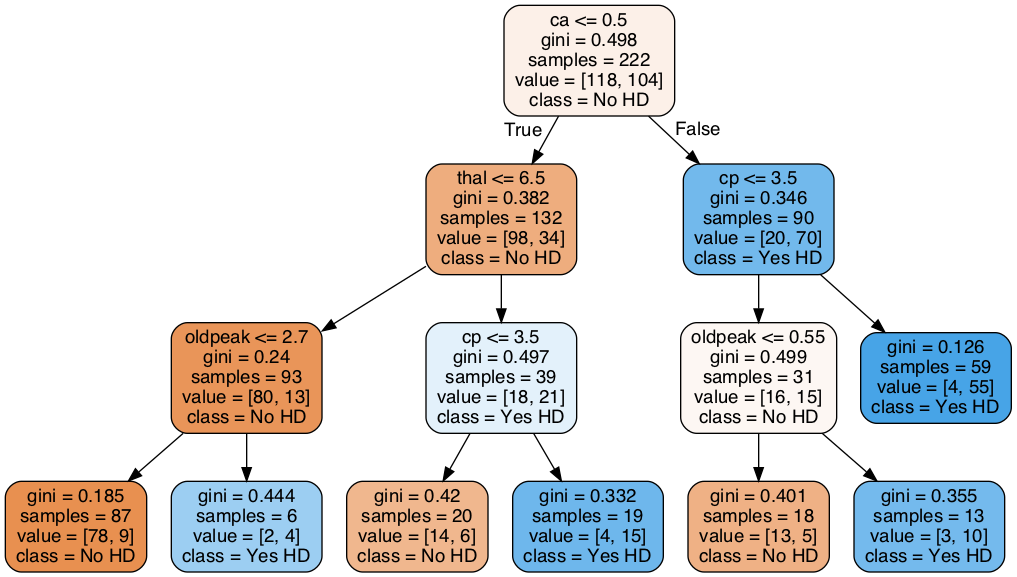

We will use scikit-learn and Cost Complexity Pruning to build this Classification Tree (below), which uses continuous and categorical data from the UCI Machine Learning Repository to predict whether or not a patient has heart disease:

In this lesson we will be carefull and use the data very carefully

Import the modules that will do all the work¶

The very first thing we do is load in a bunch of python modules. By this time you already know that Python, itself, just gives us a basic programming language. These modules give us extra functionality to import the data, clean it up and format it, and then build, evaluate and draw the classification tree.

Import the data¶

Now we load in a dataset from the UCI Machine Learning Repository. Specifically, we are going to use the Heart Disease Dataset. This dataset will allow us to predict if someone has heart disease based on their sex, age, blood pressure and a variety of other metrics.

When pandas (pd) reads in data, it returns a dataframe, which is a lot exactly like a spreadsheet, but similar with the structure of having a header, columns and data. The data are organized in rows and columns and each row can contain a mixture of text and numbers. The standard variable name for a dataframe is the initials df, and that is what we will use here:

We see that instead of nice column names, we just have column numbers. Normally you should check the dataset repository to see if they are including the headers in the data or not. If the headers are not icluded then, it should be written in the dataset repository. For example, in this case, the original dataset do not have the headers. That is why we read the dataset with header=None option included. Since nice column names would make it easier to know how to format the data, let’s replace the column numbers with the following column names (grabbed from the repository website):

• age,

• sex,

• cp, chest pain

• restbp, resting blood pressure (in mm Hg)

• chol, serum cholesterol in mg/dl

• fbs, fasting blood sugar

• restecg, resting electrocardiographic results

• thalach, maximum heart rate achieved

• exang, exercise induced angina

• oldpeak, ST depression induced by exercise relative to rest

• slope, the slope of the peak exercise ST segment.

• ca, number of major vessels (0-3) colored by fluoroscopy

• thal, this is short of thalium heart scan.

• hd, diagnosis of heart disease, the predicted attribute

Missing Data: Identifying Missing Data¶

Unfortunately, the biggest part of any data analysis project is making sure that the data is correctly formatted and fixing it when it is not. Missing Data is simply a blank space, or a surrogate value like NA, or may be just a simple “?” mark, that indicates that we failed to collect data for one or more of the features.

There are two main ways to deal with missing data:

1. We can remove the rows that contain missing data from the dataset. This is relatively easy to do, but it wastes all of the other values that we collected. How a big of a waste this is depends on how important this missing value is for classification. For example, if we are missing a value for age, and age is not useful for classifying if people have heart disease or not, then it would be a shame to throw out all of the data just because we do not have their age.

2. We can guess-timate the values that are missing, depending on the dataset you are handling, your guess might needs to be changed. So, be careful with this approach.

In this section, we will focus on identifying missing values in the dataset.

First, let’s see what sort of data is in each column.

Although everything looks good. it is a good habbit to atleast check the unique variables for each entry of the column. In this case, I have already tested and found some anomaly which I will explain below.

We see that ca contains numbers (0.0, 3.0, 2.0 and 1.0) and nan(not a number or ?). The numbers represent the number of blood vessels that we lit up by fluoroscopy and the question marks represent missing data.

Now let’s look at the unique values in thal.

Since scikit-learn’s classification trees do not support datasets with missing values, we need to figure out what to do these question marks. We can either delete these patients from the training dataset, or impute values for the missing data. First let’s see how many rows contain missing values.

Now let’s count the number of rows in the full dataset.

So 6 of the 303 rows, or 2%, contain missing values. Since 303 - 6 = 297, and 297 is plenty of data to build a classification tree, we will remove the rows with missing values, rather than try to impute their values.

NOTE: Imputing missing values is a big topic that we will tackle in another webinar. By taking the “easy” route by just deleting rows with missing values, we can stay focused on Decision Trees.

We remove the rows with missing values by selecting all of the rows that do not contain question marks in either the ca or thal columns:

Verify that now we do not have anything missing inside df_no_missing

Data formatting¶

Now we have no missing elements in the data, so we can format it like we need it. Here we will make “hd” as the target space $y$ and rest of the data as $X$. In some sense in this way $X$ can be thought of as our input or independent variables and $y$ as the dependent one.

In the code below we are using copy() to copy the data by value. By default, pandas uses copy by reference. Using copy() ensures that the original data df_no_missing is not modified when we modify X or y. In other words, if we make a mistake when we are formatting the columns for classification trees, we can just re-copy df_no_missing, rather than reload the original data and remove the missing values

Now that we have split the dataframe into two pieces, $X$, which contains the data we will use to predict classifications, and $y$, which contains the known classifications in our training dataset, we need to take a closer look at the variables in $X$. The list bellow tells us what each variable represents and the type of data (float or categorical) it should contain (again consult the data respository for understanding the data):

• age, Float

• sex - Category

  • 0 = female

  • 1 = male

• cp, chest pain, Category

  • 1 = typical angina

  • 2 = atypical angina

  • 3 = non-anginal pain

  • 4 = asymptomatic

• restbp, resting blood pressure (in mm Hg), Float

• chol, serum cholesterol in mg/dl, Float

• fbs, fasting blood sugar, Category

  • 0 = >=120 mg/dl

  • 1 = <120 mg/dl

• restecg, resting electrocardiographic results, Category

  • 1 = normal

  • 2 = having ST-T wave abnormality

  • 3 = showing probable or definite left ventricular hypertrophy

• thalach, maximum heart rate achieved, Float

• exang, exercise induced angina, Category

  • 0 = no

  • 1 = yes

• oldpeak, ST depression induced by exercise relative to rest. Float

• slope, the slope of the peak exercise ST segment, Category

  • 1 = upsloping

  • 2 = flat

  • 3 = downsloping

• ca, number of major vessels (0-3) colored by fluoroscopy, Float

• thal, thalium heart scan, Category

  • 3 = normal (no cold spots)

  • 6 = fixed defect (cold spots during rest and exercise)

  • 7 = reversible defect (when cold spots only appear during exercise)

Now, just to review, let’s look at the data types in X to see how python is seeing the data:

So, we see that age, restbp, chol and thalach are all float64, which is good, because we want them to be floating point numbers. All of the other columns, however, need to be inspected to make sure they only contain reasonable values, and some of them need to change. This is because, while scikit learn Decision Trees natively support continuous data, like resting blood preasure (restbp) and maximum heart rate (thalach), they do not natively support categorical data, like chest pain (cp), which contains 4 different categories. Thus, in order to use categorical data with scikit learn Decision Trees, we have to use a trick that converts a column of categorical data into multiple columns of binary values. This trick is called One-Hot Encoding.

At this point you may be wondering, “what’s wrong with treating categorical data like continuous data?” To answer that question, let’s look at an example: For the cp (chest pain) column, we have 4 options:

1. typical angina

2. atypical angina

3. non-anginal pain

4. asymptomatic

If we treated these values, 1, 2, 3 and 4, like continuous data, then we would assume that 4, which means “asymptomatic”, is more similar to 3, which means “non-anginal pain”, than it is to 1 or 2, which are other types of chest pain. That means the decision tree would be more likely to cluster the patients with 4s and 3s together than the patients with 4s and 1s together. In contrast, if we treat these numbers like categorical data, then we treat each one as a separate category that is no more or less similar to any of the other categories.

Now let’s inspect and, if needed, convert the columns that contain categorical and integer data into the correct datatypes. We’ll start with cp (chest pain) by inspecting all of its unique values:

NOTE: There are many different ways to do One-Hot Encoding in Python. Two of the more popular methods are ColumnTransformer() (from scikit-learn) and get_dummies() (from pandas), and the both methods have pros and cons. Please investigate using ColumnTransformer(), but here we will go with get_dummies().

First, before we commit to converting cp with One-Hot Encoding, let’s just see what happens when we convert cp without saving the results. This will make it easy to see how get_dummies() works.

As we can see in the printout above, get_dummies() puts all of the columns it does not process in the front and it puts cp at the end. It also splits cp into 4 columns, just like we expected it. cp_1.0 is 1 for any patient that scored a 1 for chest pain and 0 for all other patients. cp_2.0 is 1 for any patient that scored 2 for chest pain and 0 for all other patients. cp_3.0 is 1 for any patient that scored 3 for chest pain and cp_4.0 is 1 for any patient that scored 4 for chest pain.

Now that we see how get_dummies() works, let’s use it on the four categorical columns that have more than 2 categories and save the result. Check if we missed any other categorical data. If yes then include that in the following.

Now, one last thing before we build our very first Classification Tree. $y$ doesn’t just contain 0s and 1s. Instead, it has 5 different levels of heart disease. $0 =$ no heart disease and $1-4$ are various degrees of heart disease. We can see this with unique():

For simplicity here we will be only making a tree that does simple classification and only care if someone has heart disease or not, so we need to convert all numbers $> 0$ to 1.

Building A Classification Tree¶

Finally, the data are correctly formatted for making a Classification Tree. Now we simply split the data into training and testing sets and build the tree itself.

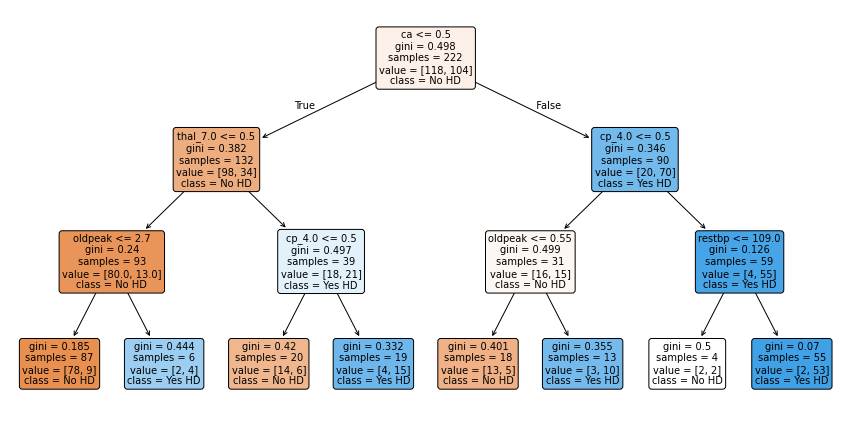

Fuyooh!!, we’ve built a Classification Tree for classification. Let us now observe how it performs on the Testing Dataset by running the Testing Dataset down the tree and drawing a Confusion Matrix.

In the confusion matrix, we see that of the 34 + 8 = 42 people that did not have Heart Disease, 34 (80%) were correctly classified. And of the 6 + 27 = 33 people that have Heart Disease, 27(81) were correctly classified. Can we do better? To make sure of that we should analyze the data

We want to see how our model performs. To do this, we can use several common metrics for quantifying the performance of classification models. These metrics help us understand how well our model is making predictions, and each one gives us a different perspective on its strengths and weaknesses.

• Accuracy: Measures the proportion of correct predictions out of all predictions made.

  $$\text{Accuracy} = \frac{\text{Number of correct predictions}}{\text{Total number of predictions}}$$

  (1)

  • Good for: Balanced datasets where all classes are equally important.

  • Limitations: Can be misleading if the dataset is imbalanced (i.e., some classes are much more frequent than others).

• Precision: Measures the ratio of correctly predicted positive observations to the total predicted positives.

  $$\text{Precision} = \frac{\text{TP}}{\text{TP}+\text{FP}}$$

  (2)

  where TP = True Positives, FP = False Positives.

  • Good for: Situations where the cost of a false positive is high (e.g., spam detection, where marking a real email as spam is bad).

• Recall (Sensitivity or True Positive Rate): Measures the ratio of correctly predicted positive observations to all actual positives.

  $$\text{Recall} = \frac{\text{TP}}{\text{TP}+\text{FN}}$$

  (3)

  where FN = False Negatives.

  • Good for: Situations where missing a positive case is costly (e.g., disease screening, where missing a sick patient is worse than a false alarm).

• F1 Score: It is the harmonic mean of precision and recall. It balances the two metrics and is useful when you need a single score that accounts for both false positives and false negatives.

  $$\text{F1 Score} = 2 \cdot \frac{\text{Precision} \cdot \text{Recall}}{\text{Precision} + \text{Recall}}$$

  (4)

  • Good for: Datasets with class imbalance, or when you want to balance precision and recall.

scikit-learn is generous enough to bless us with functions that compute all of these metrics for us, so we don’t have to do much work to compute these functions.

Testing the performance of the model on training data...

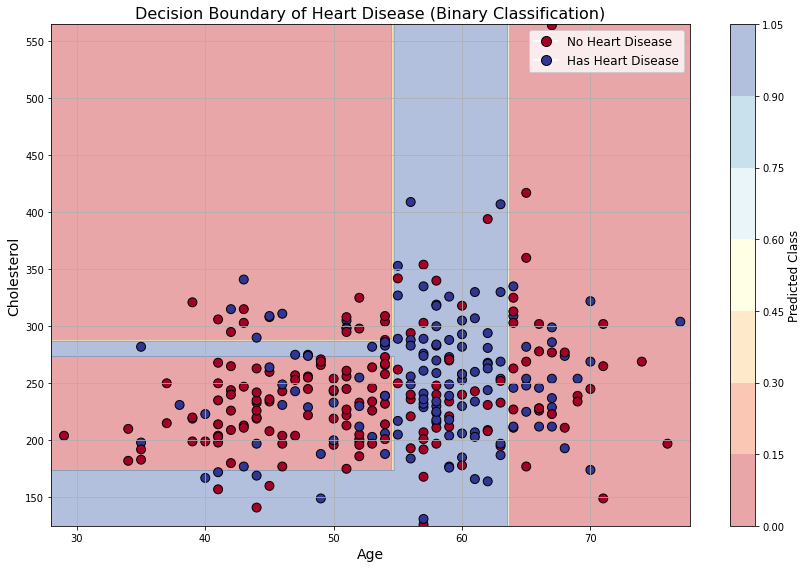

How does a tree “learn”?¶

Now we can ask the question, how is the tree getting trained? While at first it might seem somewhat mysterious when you think about it, how the model actually trains is relatively straight forward, and it comes down to a common theme in ML: the minimization/maximization of some metric guiding an iterative training process.

Remember the notion of gini index that we learned just before. When you start, at the begining you only have the root node, in which all of your data will fall since no split has been made. So Gini index is zero there. In order to determine a split, the training algorithm creates all possible splits using all features and all values of those features as thresholds. This process is repeated for all possible splits, and then the “best” split is chosen by choosing the one has the lowest total Gini impurity.

❓ Exercise¶

Q7: Change the depth of the tree and train again. Does more depth means more accuracy??

Answer: Not necessarily. Check it again.

</details>

Tips¶

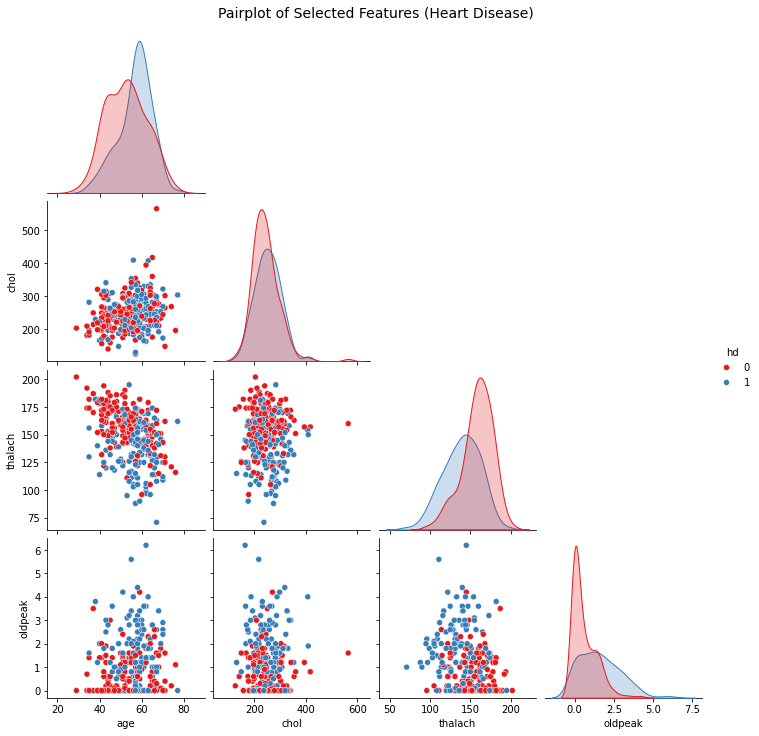

When you are not taking a tutorial session, and doing serious data analysis for life and death. One good trick is to first visualise the data without even running any ML, look for the features which are already seperated a bit. and only include them in your tree dataset. For example in the below, I have visualised some of the data from the heart disease dataset. Can you try to play around and figure out which of the data are more relevant??? Is there something, that you can automate??
