Finding PI

import matplotlib.pyplot as plt
import numpy as np

# Number of random points
N = 10000

# Generate random points in the square [-1, 1] x [-1, 1]
x = np.random.uniform(-1, 1, N) # This have to be uniformly sampled
y = np.random.uniform(-1, 1, N)


# Determine which points are inside the circle
circled = x**2 + y**2 <= 1

# Estimate PI: fraction of points inside the circle times four
pi_val = 4 * np.sum(circled) / N

print(f"Estimated value of PI: {pi_val}")

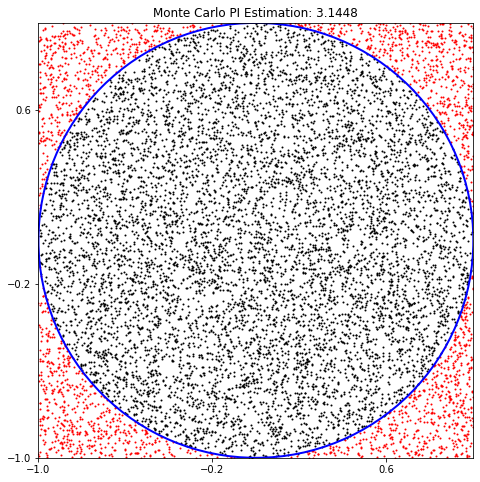

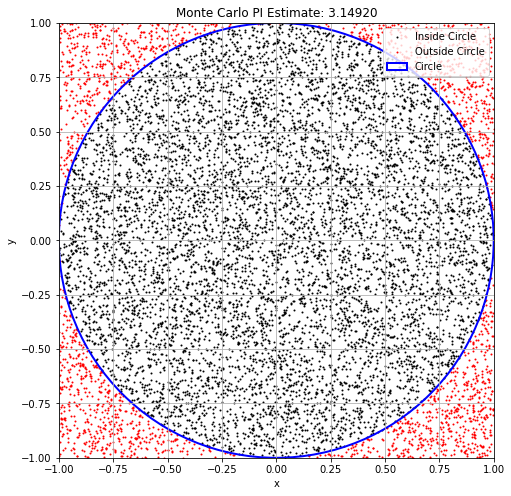

# Plotting
plt.figure(figsize=(8,8))

# Points inside the circle in blue
plt.scatter(x[circled], y[circled], color='black', s=1, label='Inside Circle')
# Points outside the circle in red
plt.scatter(x[~circled], y[~circled], color='red', s=1, label='Outside Circle')

# Draw the circle outline for reference
circle = plt.Circle((0, 0), 1, color='blue', fill=False, linewidth=2, label='Circle')

plt.gca().add_artist(circle)
plt.xlim(-1, 1)
plt.ylim(-1, 1)
plt.gca().set_aspect('equal', adjustable='box')
plt.title(f"Monte Carlo PI Estimation: {pi_val:.4f}")
# Set ticks to be in increments of 0.8
plt.xticks(np.arange(-1, 1.1, 0.8))
plt.yticks(np.arange(-1, 1.1, 0.8))
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from torchinfo import summary
import torch
from torch import nn
from torch.utils.data import DataLoader, TensorDataset, random_split

# For reproducibility
np.random.seed(42)
torch.manual_seed(42)

# Generate data
N = 10000
X_data = np.random.uniform(-1, 1, (N, 2)).astype(np.float32)
y_data = ((X_data[:, 0]**2 + X_data[:, 1]**2) <= 1).astype(np.float32) # denote the label of the point whether it is inside the circle or not

# Convert to PyTorch tensors
X_tensor = torch.tensor(X_data)
y_tensor = torch.tensor(y_data).unsqueeze(1)

# Split into training and validation sets (80/20). For most of the cases this is the standard split
val_size = int(0.2 * N)
train_size = N - val_size
dataset = TensorDataset(X_tensor, y_tensor)
train_dataset, val_dataset = random_split(dataset, [train_size, val_size])

train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)
val_loader = DataLoader(val_dataset, batch_size=512)

# Define the model

class PiNet(nn.Module):
    def __init__(self):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(2, 32), # Defining the layer
            nn.Sigmoid(), # Defining the activation function for the layer
            nn.Linear(32, 32),
            nn.Sigmoid(),
            nn.Linear(32, 1),
            nn.Sigmoid()
        )

    def forward(self, x):
        return self.net(x)

model = PiNet()

summary(model)

# Training setup
criterion = nn.BCELoss() # This is the Binary Cross Entropy loss function, specially used when the target is either 0 or 1.
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)
epochs = 200
patience = 15


# For tracking
pi_history = []
val_loss_history = []
decision_boundary_snapshots = []

# Helper functions for estimating PI and plot decision boundary

def estimate_pi(model, val_loader):
    model.eval()
    all_preds = []
    with torch.no_grad():
        for xb, _ in val_loader:
            preds = model(xb) > 0.5
            all_preds.append(preds)
    return 4 * torch.cat(all_preds).float().mean().item()

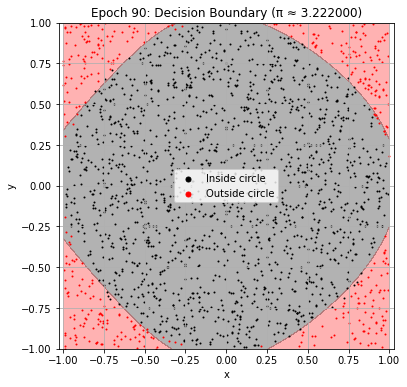

def plot_decision_boundary(model, epoch):
    model.eval()
    grid_x, grid_y = np.meshgrid(np.linspace(-1, 1, 200), np.linspace(-1, 1, 200))
    grid_points = torch.tensor(np.c_[grid_x.ravel(), grid_y.ravel()], dtype=torch.float32)

    with torch.no_grad():
        preds = model(grid_points).numpy().reshape(grid_x.shape)

    plt.figure(figsize=(6, 6))
    plt.contourf(grid_x, grid_y, preds, levels=[0, 0.5, 1], alpha=0.3, colors=['red', 'black'])

    X_val_np = val_dataset[:][0].numpy()
    y_val_np = val_dataset[:][1].numpy()
    plt.scatter(X_val_np[y_val_np[:, 0]==1][:, 0], X_val_np[y_val_np[:, 0]==1][:, 1], s=1, c='black')
    plt.scatter(X_val_np[y_val_np[:, 0]==0][:, 0], X_val_np[y_val_np[:, 0]==0][:, 1], s=1, c='red')
    plt.title(f"Epoch {epoch+1}: Decision Boundary (π ≈ {pi_history[-1]:.6f})")
    plt.xlabel("X")
    plt.ylabel("Y")
    plt.axis('equal')
    plt.grid(True)
    plt.show()

# Train loop with visual updates
epochs = 600
patience = 12
best_val_loss = float('inf')
best_epoch = 0
wait = 0

for epoch in range(epochs):
    model.train()
    for xb, yb in train_loader:
        optimizer.zero_grad()
        preds = model(xb)
        loss = criterion(preds, yb)
        loss.backward()
        optimizer.step()

    # Validation
    model.eval()
    val_loss = 0
    with torch.no_grad():
        for xb, yb in val_loader:
            val_loss += criterion(model(xb), yb).item()
    val_loss /= len(val_loader)
    val_loss_history.append(val_loss)

    pi_est = estimate_pi(model, val_loader)
    pi_history.append(pi_est)

    if (epoch + 1) % 10 == 0:
        print(f"Epoch {epoch+1}: Val Loss = {val_loss:.4f}, π ≈ {pi_est:.6f}")

    # Update best model
    if val_loss < best_val_loss:
        best_val_loss = val_loss
        best_epoch = epoch
        best_model_state = model.state_dict()
        wait = 0
    else:
        wait += 1
        if wait >= patience:
            print("Early stopping!")
            break

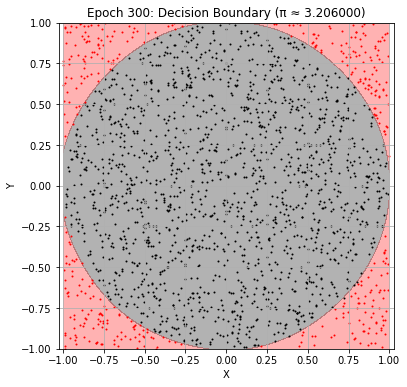

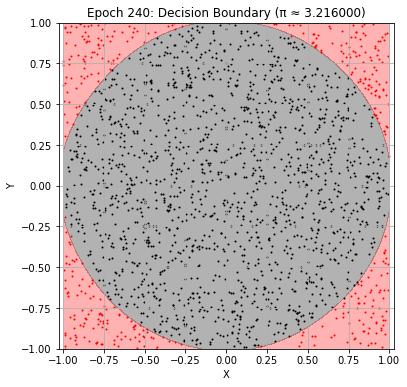

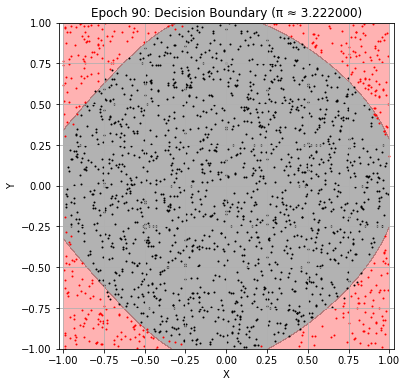

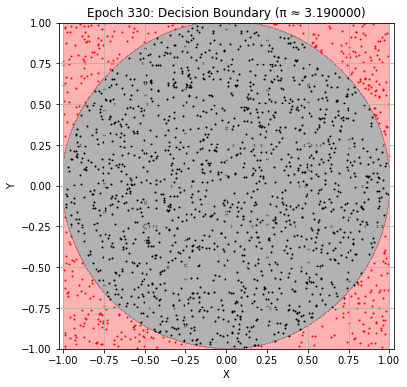

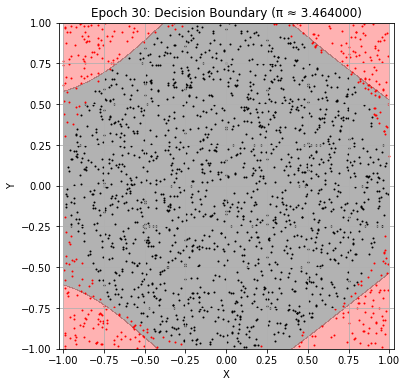

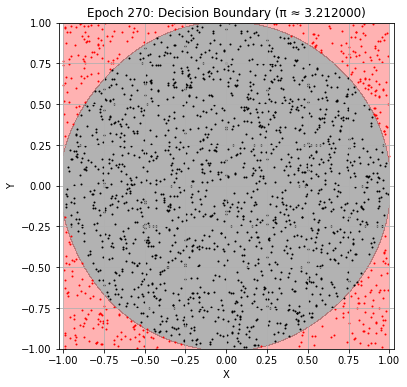

    # Plot every 30 epochs

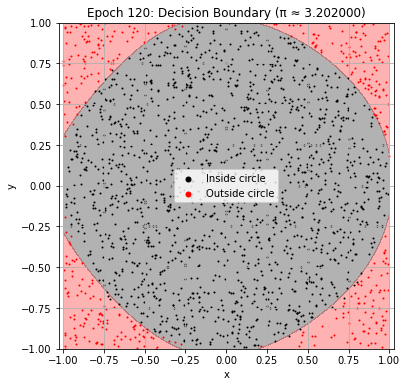

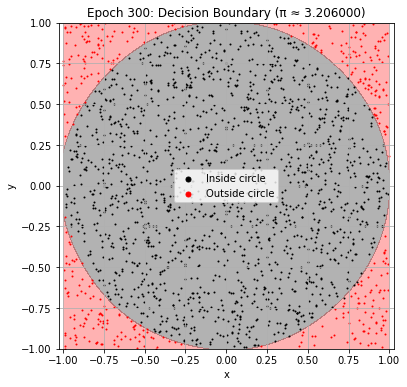

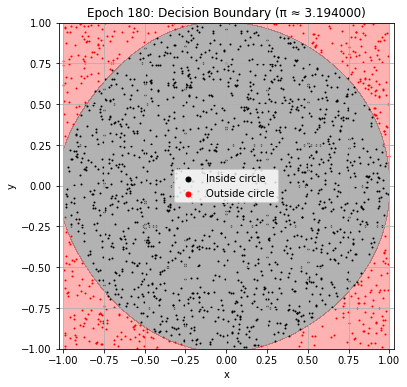

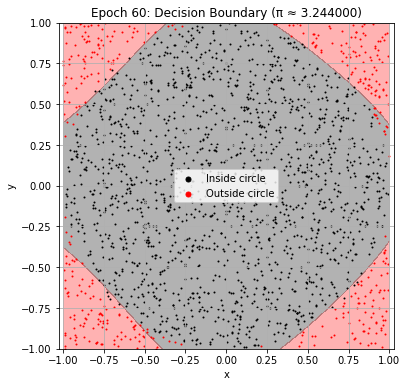

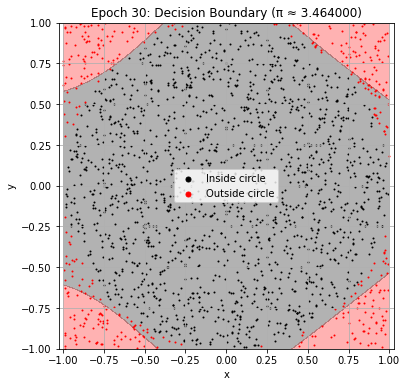

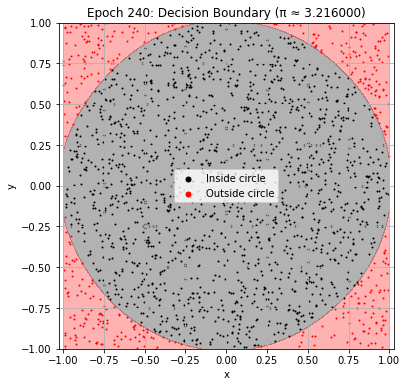

    if (epoch + 1) % 30 == 0:
        plot_decision_boundary(model, epoch)

# Final plots after training
model.load_state_dict(best_model_state) # This is the best model saved by the early stopping
print(f"\nBest result at epoch {best_epoch+1}: π ≈ {pi_history[best_epoch]:.6f} (val_loss: {val_loss_history[best_epoch]:.6f})")

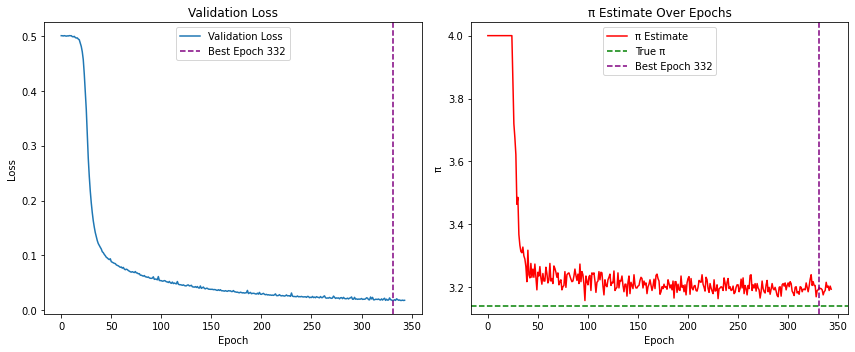

# Plot loss and π estimate history
plt.figure(figsize=(12, 5))

# Loss
plt.subplot(1, 2, 1)
plt.plot(val_loss_history, label="Validation Loss")
plt.axvline(x=best_epoch, color='purple', linestyle='--', label=f'Best Epoch {best_epoch+1}')
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend()
plt.title("Validation Loss")

# π Estimate
plt.subplot(1, 2, 2)
plt.plot(pi_history, color='red', label="π Estimate")
plt.axhline(y=np.pi, color='green', linestyle='--', label="True π")
plt.axvline(x=best_epoch, color='purple', linestyle='--', label=f'Best Epoch {best_epoch+1}')
plt.xlabel("Epoch")
plt.ylabel("π")
plt.legend()
plt.title("π Estimate Over Epochs")

plt.tight_layout()
plt.show()

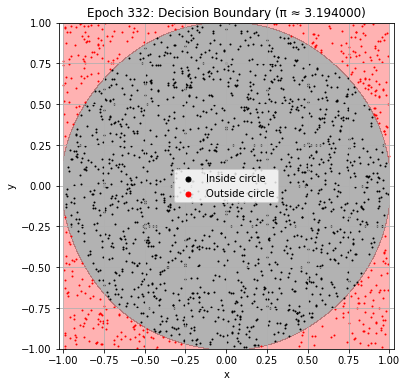

# Final decision boundary
plot_decision_boundary(model, best_epoch)
